GO减压阀PR1系列

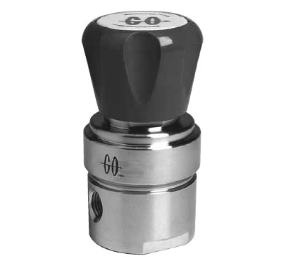

PR-1 Series Adjustable Pressure Reducing Regulator
GO PR1系列是一种多功能减压阀调节器旨在满足广泛的需求仪器样品系统和其他应用如半导体加工气体。 许多PR-1的特点使其非常适合各种应用控制压力在低到中等气体或液体介质中的流动。 采用316L机身材质以方便焊接连接。 不锈钢盖和调节螺钉防止大气腐蚀并保持外观。 增强的内部主体表面光洁度优于 25 Ra 加电抛光
允许更轻松的清洁和可能更少的颗粒流中的污染。五种不同阀座材料，三种交替孔口尺寸和七个压力控制范围与不锈钢隔膜为用户提供了广泛的范围入口压力升高时的压力控制能力高达 6000 psig 和标准工作温度至 500° F (260° C)。

技术数据：
• 气体或液体
• 316L stainless steel, Inconel®, PTFE, and Tefzel® (or
optional main seat material choice) only in fl ow
stream
• Electropolished 316L body with better than 25 Ra
diaphragm cavity surface fi nish
• Stainless steel cap with SS adjusting screw
• Inlet pressures of up to 6000 psi
• Adjustable outlet pressure ranges of 0–10, 0–25,
0–50, 0–100, 0–250, 0–500 and 0–750 psig
• Operating temperatures of −40° F up to +500° F
(−40° C up to +260° C)
• 20 micron fi lters
• Bubble-tight shutoff under most conditions
• Cv fl ow coeffi cients 0.025, 0.06, 0.20, and 0.50 (0.06
standard)
Options
• Wetted materials of construction: Monel®,
Hastelloy®, and titanium
• Diaphragm attached poppet
• Special fi ttings
• Diaphragm assist spring for vacuum purging
• Panel mount (13⁄8˝ mounting hole)
• Relief valves
• Special diaphragm assembly for water service
• SS inlet pressure gauges
• SS outlet pressure gauges
• Base-mounting brackets
• Captured vent
• Self-relieving

最高温度和工作压力
Tefzel® 150° F (66° C) @ 3600 psig (24.82 MPa)
High density PTFE 150° F (66° C) @ 3600 psig (24.82 MPa)
PCTFE
(formerly Kel-F® 81)
175° F (80° C) @ 6000 psig (41.37 MPa)
Polyimide 500° F (260° C) @ 3600 psig (24.82 MPa)
Polyimide 175° F (80° C) @ 6000 psig (41.37 MPa)
PEEK™ 500° F (260° C) @ 3600 psig (24.82 MPa)
PEEK™ 175° F (80° C) @ 6000 psig (41.37 MPa)
* Temperatures in excess of 175° F (80° C) require a metal knob or the
tamper-proof option.

产品选型说明：
